China leading palm oil mill plant machine manufacturer and supplier

Huatai Group Batch Refining Plant is highly versatile and can process a wide range of crude edible oil.

Common raw materials: crude palm oil, crude soybean oil, crude sunflower oil, crude canola oil, crude peanut oil, crude corn germ oil, and other edible oils.

Final Products

Refined, bleaching and deodorization oil, neutral in flavor and smell with a clear appearance.

Physically refined oil, a chemical free process ideal for oils like palm and coconut oil.

Chemically refined oil, using caustic soda for oils with high levels of free fatty acids.

Huatai Small Batch Refining process involves four critical stages to ensure the highest purity and shelf life for edible oil.

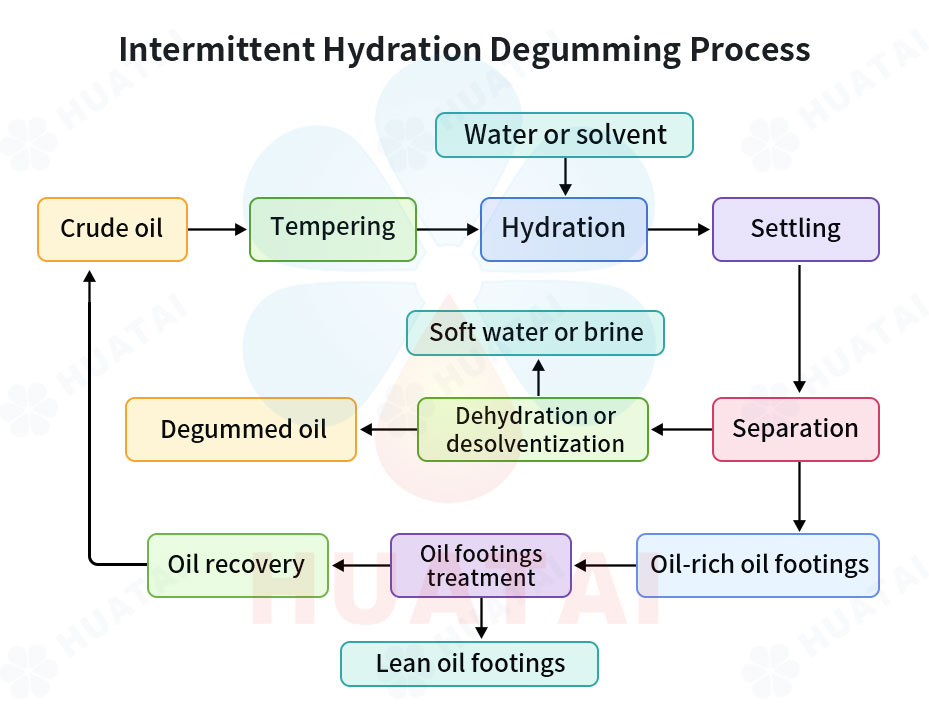

Degumming, removal of phosphatides gums and other hydratable impurities.

Process, hot water of food grade acid is mixed with the crude oil. the gums become hydrated and are separated via centrifugation or settling.

Neutralization, to reduce free fatty acids which cause rancidity and off-flavors.

A calculated amount of caustic soda is added to the oil. It reacts with FFAs to form soapstock. The soapstock is then separated using a centrifugal separator.

Bleaching. Removal of color pigments, residual soaps, and metal ions. The neutralized oil is mixed with a specific bleaching earth (clay) under vacuum and heat. This adsorbs the impurities, and the spent earth is filtered out using a filter press.

 Low Initial Investment & Operating Cost

Perfect for businesses with limited capital. Lower energy and water consumption compared to continuous systems.

 Exceptional Flexibility

Easily switch between different types of crude oils (e.g., process peanut oil one day and sunflower oil the next) without cross-contamination.

Simple Operation & Easy Maintenance

Designed for ease of use, requiring only 1-2 operators. No complex automation, making maintenance straightforward and affordable.
