Palm oil mill wastewater (POME) is characterized by high oil content, high COD, high SS (suspended solids), and acidity. The mainstream treatment process employs multi-stage oil removal + anaerobic + aerobic + advanced treatment, complemented by biogas recovery and sludge resource utilization.

 Wastewater Quality Characteristics (POME)

COD: 20,000–60,000 mg/L

BOD₅: 10,000–30,000 mg/L

Oil: 500–3,000 mg/L (floating oil, dispersed oil, emulsified oil)

SS: 2,000–5,000 mg/L (fiber, debris)

pH: 4.0–5.5 (acidic)

Temperature: 60–80℃ (high temperature)

Core Process Flow

Raw Water → Bar Screen → Three-Phase Centrifuge → Oil-water Sedimentation Tank → Dissolved Air Flotation (DAF) → Equalization Tank (Neutralization/Cooling) → Anaerobic (UASB/IC) → Aerobic (A/O/MBR) → Advanced Treatment → Discharge to Standard/Reuse

1) Pretreatment (Key: Oil Removal, SS Reduction, Homogenization)

Bar Screen: Removes large fibers and fruit peels, protecting equipment.

Three-phase centrifugation: Separates floating oil from solids, recovers crude oil, and reduces oil content to <500 mg/L.

Oil-water separator/sedimentation tank: Removes floating oil and settleable suspended solids (SS), and scrapes off and recovers surface oil.

Dissolved air flotation (DAF): Adds PAC/PAM to remove emulsified oil and fine SS, reducing oil content to <20 mg/L and COD removal to 30%–50%.

Equalization tank: Adds lime/NaOH to neutralize pH to 6.5–7.5; cools to 35–40℃; homogenizes and equalizes volume, buffering load fluctuations.

2) Anaerobic treatment (core: COD reduction, biogas production)

Processes: UASB, IC, EGSB (high load, small footprint). Results: COD reduced from 20,000–40,000 mg/L to 2,000–5,000 mg/L, removal rate 80%–90%; biogas production (CH₄ 60%–70%), calorific value approximately 22–25 MJ/m³, used for boiler/power generation, energy self-sufficiency.

Advantages: Low sludge production (0.02–0.05 kgMLSS/kgCOD), low operating costs.

3) Aerobic Treatment (Deep BOD/COD Reduction, Nitrogen Removal)

Processes: A/O, contact oxidation, MBR (excellent effluent).

Results: COD reduced to <500 mg/L, BOD₅ <100 mg/L; simultaneous nitrification/denitrification nitrogen removal, NH₃-N <15 mg/L.

MBR Advantages: Clear effluent (SS <10 mg/L), directly reusable (for cleaning, cooling).

4) Advanced Treatment (Compliance/Reuse)

Fenton Oxidation: Degrades recalcitrant organic matter and decolorizes, further reducing COD to <100 mg/L.

Sand Filtration/Activated Carbon Filtration: Removes trace amounts of suspended solids (SS) and color, ensuring stable compliance.

Disinfection: Sodium hypochlorite/ultraviolet light kills pathogens.

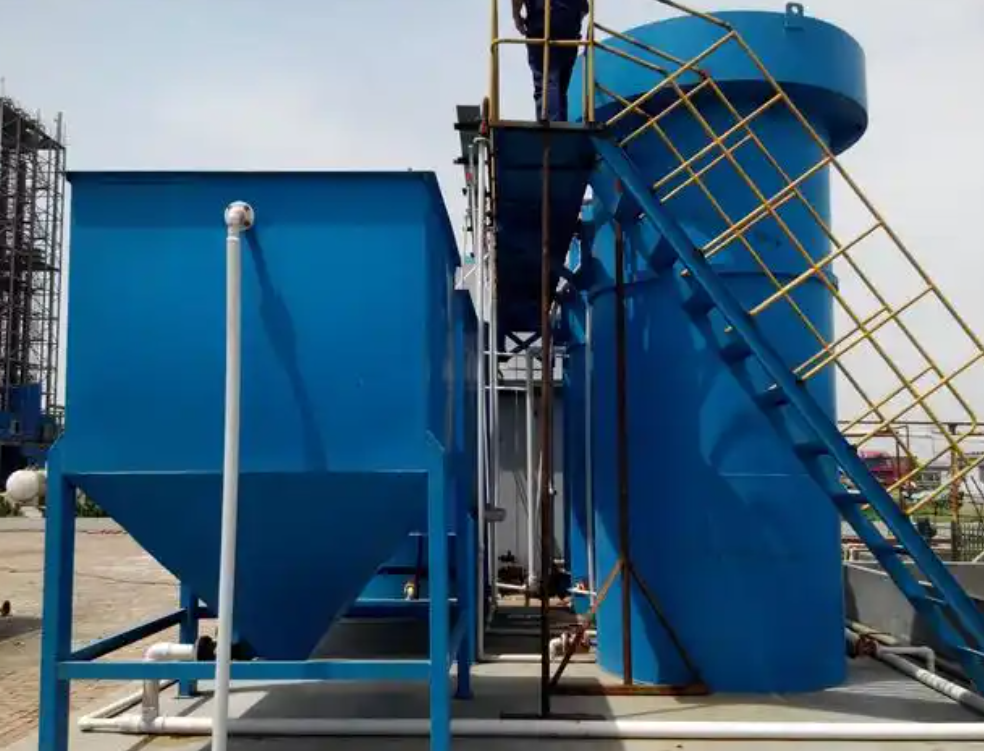

The equipment list of raw water treatment station

1.Water Clarifier Tank

2.Sand Filter Pump

3.Sand Filter

4.Overhead Water Tank c/w Structural
