The core of palm oil machinery manufacturing revolves around the entire process from Fresh Fruit Bunch (FFB) to Crude Oil (CPO) to Refined Raw Material (RBD) to fractionation, encompassing complete sets of equipment and turnkey projects for pretreatment, pressing, refining, and fractionation. Mainstream capacity covers 0.5–120 tons/hour of fresh fruit bunches. Leading domestic companies, such as Henan Huatai, have turnkey project capabilities in Southeast Asia and Africa.

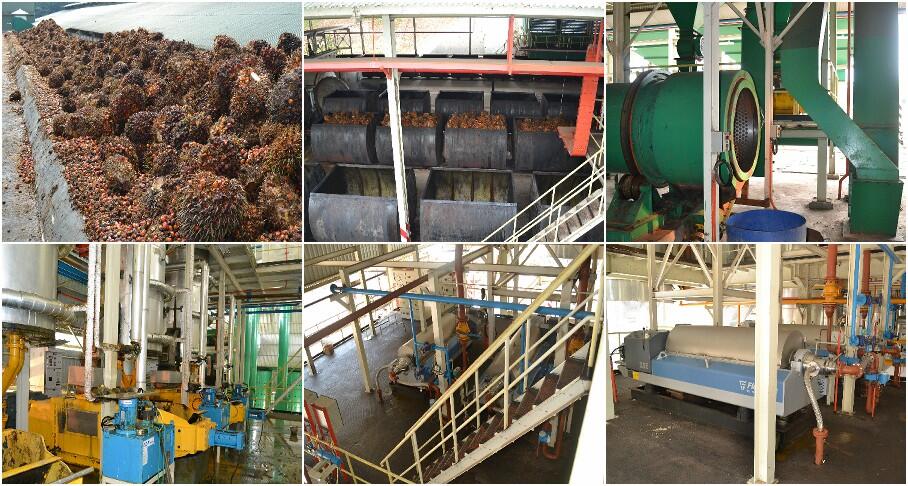

1. Standard Process Section
Table: Process Section | Core Equipment | Key Parameters / Function
Pretreatment | Fermentation Tank, Fruit De-icing Machine, Crusher | Fermentation | 130–145℃/90–120 minutes for enzyme inactivation; Fruit De-icing to separate fruit bunches and berries; Crushing to destroy fruit pulp cells
Pressing | Twin-Screw Oil Press, Clarifying Tank | Residual oil rate ≤1%; with supporting vibrating screen/plate and frame filter to obtain crude oil

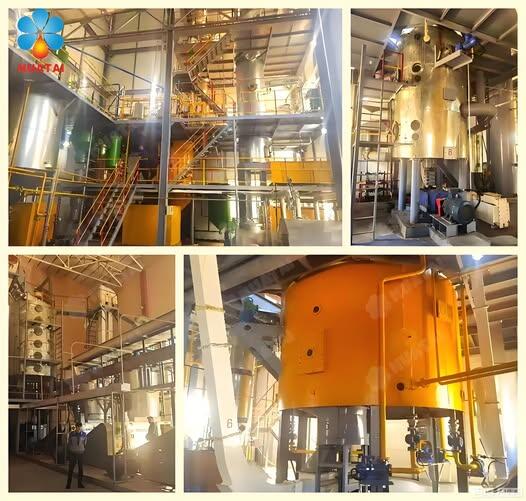

Refining | Degumming/Deacidification, Decolorization, Deodorization Tower | Mainly physical refining, vacuum ≤500Pa, heat recovery ≥85%, yield increase 3%–5%
Fracturing | Crystallization Tank, Membrane Filter | Fracturing palm gum/stearin, melting point coverage 24–56℃, increasing product premium
2. Scale Configuration RecommendationsSmall Workshop: 0.5–1 ton/hour, Fermentation + Fruit De-icing + Twin-Screw Press + Coarse Filter, equipment approximately 50–100 Medium-sized factory: 3-10 tons/hour, semi-continuous refining, equipment approximately 2-5 million RMB
Large-scale turnkey project: 30-120 tons/hour, fully continuous refining + fractionation, equipment approximately 8-30 million RMB.
1. Initial Investment (including civil engineering, equipment, and permits)
Table Item Cost Range Description Core Equipment 3-5 million RMB Pressing line + refining line + fractionation line, food-grade 304/316L stainless steel
Plant Construction 1-3 million RMB 3000-8000㎡ steel structure plant, including steam boiler and utilities
Certification and Testing 500,000-1,000,000 RMB SC license, TS pressure vessel certificate
Installation and Commissioning 500,000-1,500,000 RMB Including training, trial operation, and performance testing
Total Investment 5-10,500,000 RMB Higher automation levels increase costs by 10%–30%.
2. Operating Costs (Annual Production of 30,000 Tons of RBD Palm Oil)
Raw Materials: Fresh fruit bunches account for approximately 40% of total costs, calculated at 2500 RMB/ton.
Energy Consumption: Steam + Electricity approximately 15%, approximately 150–250 RMB/ton of oil.
Labor and Maintenance: Approximately 10%, approximately 80–120 RMB/ton of oil.
By-product Revenue: Oil cake/meal and palm kernels can offset **10%–15%** of costs.
1. Core Technical Indicators
Fermentation Killing: Temperature 130–145℃, Time 90–120 minutes, ensuring enzyme inactivation and quality.
Pressing: Adjustable double-screw pitch, residual oil rate ≤1%, energy consumption reduced by 15%.
Refining: Physical refining with no soap residue wastewater, glycidyl esters ≤0.3mg/kg.
Fracturing: Precise control of crystallization temperature, lint yield 70%–75%.
2. Essential Certifications and Standards
Food Contact: ISO 21469, EHEDG Hygiene Standards
Pressure Vessels: TS Certification (China), CE-PED (EU)
Energy Efficiency: ISO 50001 Energy Management System
Product Standards: Compliant with GB/T 11765 (Palm Oil), RBD Specifications
Global Market: Steady CAGR from 2025 to 2030, with Southeast Asia and Africa as the main drivers of growth; China's equipment export share continues to increase.
Domestic Leader: Henan Huatai (38 years of experience, 3-120 tons/hour turnkey projects) possesses full-process design and manufacturing capabilities.
Competitive Focus: Automation level, energy consumption indicators, separation technology, overseas delivery and after-sales capabilities.
Profit Model and Return Calculation
1. Profit Sources
Main Equipment Sales: Equipment gross profit margin 20%-30%
Turnkey Projects: Design + Equipment + Installation + Operation and Maintenance, gross profit margin 30%-40%
Spare Parts and Services: Annual maintenance fee approximately 3%-5% of equipment value, long-term stable.
2. Return on Investment for a 3-ton/hour Factory (30,000 tons/year)
Annual Output Value: Approximately 180-270 million RMB (RBD oil average price 9,000 RMB/ton)
Total Annual Cost: Approximately 150-200 million RMB
Net Profit: Approximately 20-40 million RMB
Payback Period: 3-5 years (depending on raw material costs and distribution channels)
Risks and Pitfalls
Raw Material Security: Long-term contracts with oil palm plantations are necessary to avoid supply shortages.
Quality Stability: Acid value, peroxide value, and aflatoxin testing are mandatory; strict control of sterilization temperature is essential.
Compliance Risks: Obtain SC permits and pressure vessel certificates in advance to avoid business shutdowns and rectification.
Energy Consumption Control: Prioritize energy-saving equipment (such as variable temperature deodorization systems) to reduce the cost per ton of oil.
Capacity Positioning: Determine capacity of 0.5-120 tons/hour based on target market and raw material scale. Hourly Rate
Manufacturer Partnership: Contact Huatai Enterprise to obtain process solutions and quotations
Qualification Preparation: Simultaneously handle factory construction, environmental impact assessment, and certification to shorten the implementation cycle
Channel Layout: Prioritize serving palm oil plantations in Southeast Asia/Africa, or high-end food and chemical clients in China
In short: The core of palm oil machinery manufacturing is to provide complete sets of equipment and turnkey projects. Taking a medium-sized capacity of 3-10 tons/hour as the entry point, combined with energy-saving technology and compliance certification, stable return on investment can be achieved in 3-5 years. Long-term profits come from spare parts and operation and maintenance services.
If you are interested in our palm oil machine and palm oil mill plant. You can contact us through online consultation, filling out the form below, email, phone, etc. Our engineers will customize the most suitable plan and best price for you.
